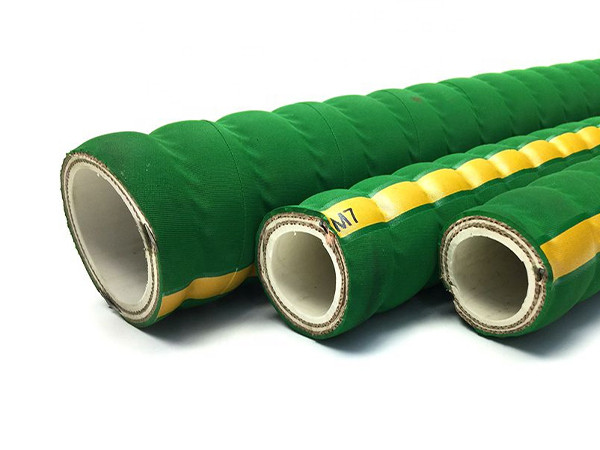

Acid and alkali resistant rubber hose is applied for conveying sulfuric acid with a concentration below 40% and other inorganic acids (except nitric acids) as well as dilute alkali at no more than 45 °C.
Specification:
| Part No | ID | OD | Max W.P. | Min B.P. | Layer | Length | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | psi | MPa | psi | MPa | inch | m | kg/m | |
| ARRH-0013 | 1/2" | 13 | 22 | 260 | 1.8 | 780 | 5.4 | 2" | 20 | 0.46 |
| ARRH-0016 | 5/8" | 16 | 24 | 260 | 1.8 | 780 | 5.4 | 2" | 20 | 0.51 |
| ARRH-0019 | 3/4" | 19 | 29 | 260 | 1.8 | 780 | 5.4 | 2" | 20 | 0.73 |
| ARRH-0022 | 7/8" | 22 | 31 | 260 | 1.8 | 780 | 5.4 | 2" | 20 | 0.82 |
| ARRH-0025 | 1" | 25 | 34 | 260 | 1.8 | 780 | 5.4 | 2" | 20 | 1.00 |
| ARRH-0032 | 1-1/4" | 32 | 43 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 1.30 |
| ARRH-0038 | 1-1/2" | 38 | 50 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 1.50 |
| ARRH-0045 | 1-3/4" | 45 | 57 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 1.80 |
| ARRH-0051 | 2" | 51 | 63 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 2.40 |
| ARRH-0064 | 2-1/2" | 64 | 77 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 2.80 |
| ARRH-0076 | 3" | 76 | 90 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 3.10 |
| ARRH-0089 | 3-1/2" | 89 | 103 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 3.40 |
| ARRH-0102 | 4" | 102 | 116 | 260 | 1.8 | 780 | 5.4 | 4" | 20 | 3.90 |
| ARRH-0127 | 5" | 127 | 144 | 260 | 1.8 | 780 | 5.4 | 6" | 10 | 4.50 |
| ARRH-0152 | 6" | 152 | 169 | 260 | 1.8 | 780 | 5.4 | 6" | 10 | 6.00 |
Feature
By choosing the right acid and alkali resistant hoses, industries can maintain a safe and efficient working environment while handling corrosive substances effectively. Ongoing advancements in acid and alkali resistant hose technology continue to improve their resistance capabilities, expanding their range of applications and providing enhanced performance and reliability.
Application
Acid and alkali resistant rubber hose is used to transport chemical solvents, acidic substances, alkaline substances and alcohol, especially suitable for industrial drainage, seawater transport and water purification systems.
