Fuel Oil Hose for Oil, Fuel, Gasoline Transfer

Three high tensile fiber braided fuel oil hose opening detail
Fuel oil hose opening detail

Fuel oil hose is made of synthetic rubber with oil resistance, high tensile synthetic yarn braided or spiral and high tensile braided of fibers. It is designed to convey oil, fuel, gasoline and other mining oil.

The fuel oil hose consists of three layers, it is inner layers, reinforcement layer and outer layer. The inner layer as the media to convey directly oil is made of SBR or NBR synthetic rubber with oil resistance to improve the convey efficiency. The reinforcement layer is made of high tensile synthetic yarn or fiber braided. It plays a role of standing the pressure. The outer layer is made of SBR or NBR rubber which resists aging, good flexibility, excellent bending.

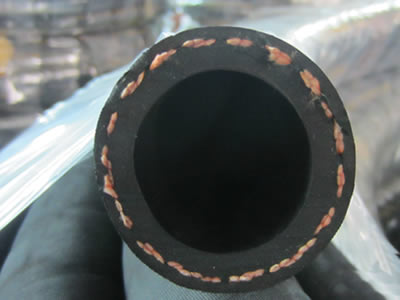

It shows the cross section profile of one fuel oil hose.
Fuel oil hose cross section profile.

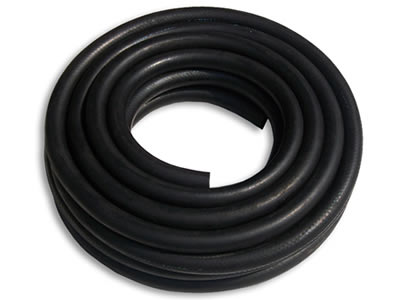

There is one roll of fuel oil hose displayed in the picture.
Fuel oil hose roll.

Specification:

  • Construction:
    • Inner tube: black, smooth, SBR, NBR synthetic rubber with oil resistance.
    • Reinforcement: high tensile synthetic yarn braided or spiraled, high tensile braid of fibers.
    • Outer cover: black, smooth SBR or NBR synthetic rubber, with abrasion, weather and oil mist resistant.
  • Temp Range: -40°C to 110°C.
  • Standard length: 30m, 50m, 100m.
  • Packing: PVC film or weaving bags.
  • Characteristics: smooth surface, resist abrasion, aging, weather, high pressure, lightweight, especially oil resistant, good flexibility, easy to install.

Application: The fuel oil hose is ideal for conveying kerosene, gasoline, diesel, engine oil, gasoline, lubricating oil and other mineral oil.

Fuel Oil Hose Size Table
Model I.D. O.D. W.P. B.P. Weight Radius Length max.
mm inch mm MPa psi MPa psi kg/m mm m/roll
FOH-1 5 3/16" 12 2.0 300 6.0 900 0.13 30 100
FOH-2 6 1/4" 13 2.0 300 6.0 900 0.15 35 100
FOH-3 8 5/16" 15 2.0 300 6.0 900 0.23 50 100
FOH-4 10 3/8" 17 2.0 300 6.0 900 0.26 60 100
FOH-6 13 1/2" 22 2.0 300 6.0 900 0.36 60 100
FOH-7 16 5/8" 25 2.0 300 6.0 900 0.53 90 100
FOH-8 19 3/4" 29 2.0 300 6.0 900 0.64 110 100
FOH-9 25 1" 36 2.0 300 6.0 900 0.85 130 100
A roll black surface fuel oil hose fastened with plastic rope
Fuel oil hose fastened with plastic rope
A lot of rolls fuel oil hose packing with weaving bags
Fuel oil hose packing with weaving bags in stock
