Sandblast Hose Conveys Effectively Particles, Sand Flow

A sandblast hose with steel wire braided reinforcement detail
sandblast hose with steel wire braided reinforcement

Sandblast hose also named sandblasting hose is a kind of rubber hose of transporting material. It consists of inner layer, reinforcement layer and outer layer.
Inner layer: the main materials are polyurethane and butyl rubber added special reinforcing agent. It resists wear, high toughness, high pressure.
Reinforcement layer: cloth sandblast hose uses the high quality cloth, it is a excellent flexible performance and high capacity. Steel wire braided sandblast hose adopts the steel wire braided. It features high pressure resistance and superior flex resistance.
Outer layer: use synthesis natural rubber and other synthetic rubbers, exhibiting good wear- and oxidation resistance.

It is mainly used to transport particles, gravel cement, sand flow, concrete, plaster and other liquid containing solid particles. Ideal for all kinds of tunnel engineering roadway, caverns and other engineering operations.

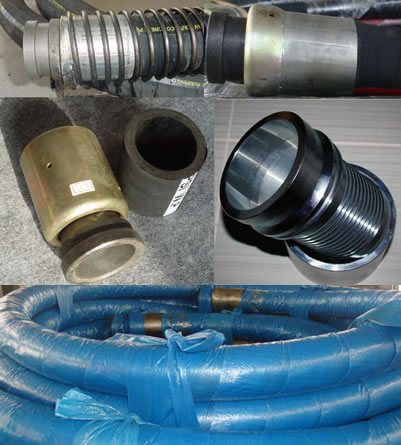

One roll of sandblasting hose and its connectors are displayed in the picture.
Sandblasting hose and its connectors.

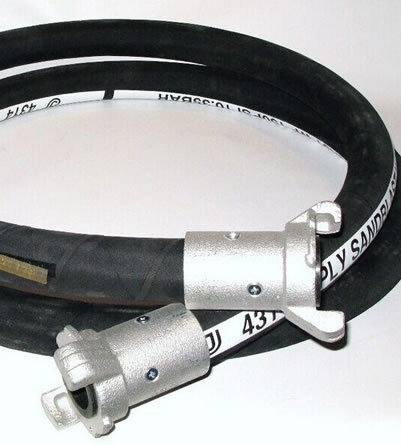

One sandblast hose is displayed in the picture, with mark on the surface.
Sandblast with 4 PLY.

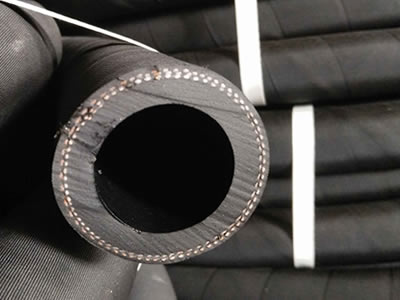

From the picture, you can see the cross section of the sandblast hose with two layers of reinforcement.
Sandblast hose with two layers of reinforcement.

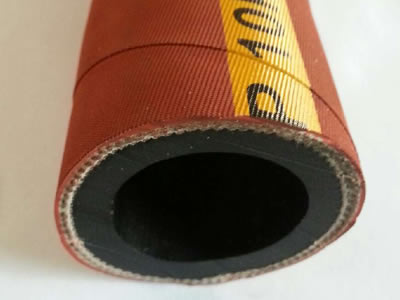

There is one section of sandblast hose with red cover.
Sandblast hose with red cover.

Specification:

  • Construction: inner layer, reinforcement layer, outer rubber layer.
  • Inner diameter: 16mm to 102mm.
  • Working temperature: -20°C ~ +90°C.
  • Feature: high tensile, resistant to abrasion, weather, ozone and aging.
Sandblast Hose Size Table
Model Inner Diameter Outer Diameter Reinforcement Ply W.P Weight Length
mm inch mm MPa psi kg/m lb/ft m ft
SBH-1603 16 5/8 29 3 0.6 85 0.56 0.37 20 60
SBH-1903 19 3/4 34 3 0.8 114 0.74 0.47 20 60
SBH-1904 19 3/4 35 4 1.0 142 0.80 0.53 20 60
SBH-2505 25 1 44 5 1.0 142 1.20 0.80 20 60
SBH-3204 32 11/4 49 4 0.6 85 1.30 0.87 20 60
SBH-3205 32 11/4 51 5 0.8 114 1.40 0.94 20 60
SBH-3803 38 11/2 56 3 0.6 85 1.50 1.00 20 60
SBH-3805 38 11/2 60 5 1.0 142 1.90 1.27 20 60
SBH-4504 45 13/4 57 4 0.8 114 2.00 1.34 30 60
SBH-5104 51 2 71 4 0.6 85 2.10 1.41 20 60
SBH-6404 64 21/2 85 4 0.6 85 2.80 1.88 20 60
SBH-7605 76 3 97 5 0.6 85 3.65 2.45 20 60
SBH-7607 76 3 103 7 0.8 114 4.20 2.82 30 60
SBH-10207 102 4 129 7 0.6 85 5.70 3.82 10 30

Application: sandblast hose is suitable for various kinds of sandblast machines, all kinds of tunnel engineering, roadway, mining. Also used for industrial cleaning, rust-removing, de-oxidation, cutting, polishing and casting service.
