High Pressure Hose for Oil, Air, Water Emulsion

Three high pressure steel wire braided hoses: one layer steel wire braided hose, two layers steel wire braided hose and three layers steel wire braided hose.
High pressure steel wire braided hose for one, two and three steel wire braided.

High pressure steel wire braided hose is made of inner layer synthetic rubber which resists oil and water, middle layer, one, two or three layers steel wire braided reinforcement layer, and excellent weather resistance performance synthetic rubber. We refer to the GB/t3683-2011 standard to design our high pressure steel wire braided hose. This standard is suitable for castor oil-based and lipid-based liquid. Other standard braided hose can be customized by client requirements.

Specification:

  • Construction: inner layer, middle layer, reinforcement layer, outer layer.
  • Working temperature: oil: -40°C - 100°C, air: -30°C - 50°C, water emulsion: below 80°C.
It shows two rubber hoses, one of which has mark of diameter and working pressure.
SAE 100R1 at 1-1/2" high pressure rubber hose.

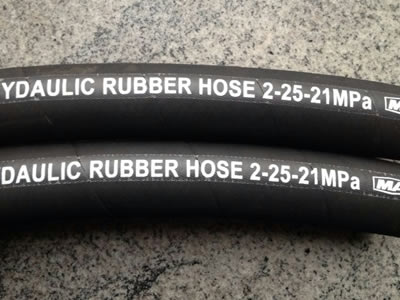

It shows two hydraulic rubber hoses in the picture, with the name and working pressure marked on them.
2-25-21 MPa high pressure steel wire braided hose.
It shows two steel wire braided hoses with two reinforcement, and they have different diameters.
High pressure steel wire braided hose with two layers of reinforcement.

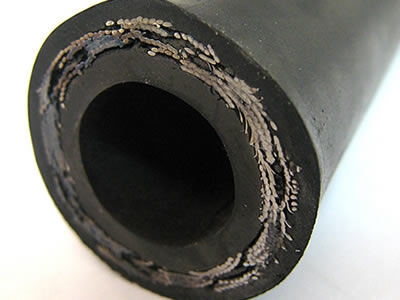

It shows one steel wire braided hose with three layers of reinforcement.
High pressure steel wire braided hose with three layers of reinforcement.
One Layer High Pressure Steel Wire Braided Hose Size Table
Model Inside Diameter (mm) Wire Layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
OBH-1 5 ± 0.5 9.5 ± 0.6 12.7 ± 0.8 21 31.5 63 90 0.25
OBH-2 6 ± 0.5 11.3 ± 0.6 15.3 ± 0.8 21 31.5 63 100 0.34
OBH-3 8 ± 0.5 13.3 ± 0.6 17.3 ± 0.8 118 27 54 115 0.41
OBH-4 10 ± 0.5 15.3 ± 0.6 19 ± 0.8 16 24 48 130 0.47
OBH-5 13 ± 0.5 18.8 ± 0.6 22.8 ± 0.8 14 21 42 180 0.67
OBH-6 16 ± 0.5 21.8 ± 0.8 25.8 ± 0.8 12 18 36 205 0.70
OBH-7 19 ± 0.5 24.8 ± 0.8 28.8 ± 0.8 10 15 30 240 0.84
OBH-8 22 ± 0.5 28.7 ± 0.8 31.8 ± 0.8 9 13.5 27 280 0.95
OBH-9 25 ± 0.5 31.3 ± 0.8 35.8 ± 0.8 8 12 24 300 1.09
OBH-10 32 ± 0.7 38.7 ± 0.8 42.7 ± 0.8 6 9 18 420 1.24
OBH-11 38 ± 0.7 44.7 ± 0.8 48.7 ± 1.2 5 7.5 15 500 1.45
OBH-12 51 ± 0.7 58.1 ± 0.8 62.1 ± 1.2 4 6 12 630 1.90
OBH-13 64 ± 1.0 71.2 ± 1.0 75.2+1.5 2.5 3.75 7.5 770 2.40
OBH-14 76 ± 1.0 83.8 ± 1.0 87.8+1.5 1.5 2.25 4.5 930 2.95
OBH-15 89 ± 1.0 96.8 ± 1.0 100.8+1.5 1 1.5 3 1100 3.24
OBH-16 102 ± 1.0 111 ± 1.0 115+1.5 1 1.5 3 1250 3.85
OBH-17 127 ± 1.0 136 ± 1.0 141 ± 1.5 1 1.5 3 1500 4.80
OBH-18 152 ± 1.0 162 ± 1.0 167 ± 1.5 1 1.5 3 1800 5.80
OBH-19 203 ± 1.0 214 ± 1.5 220 ± 2.0 1 1.5 3 2300 8.80
Two Layers High Pressure Steel Wire Braided Hose Size Table
Model Inside Diameter (mm) Wire Layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
TBH-1 5 ± 0.5 11.2 ± 0.6 15 ± 0.8 60 90 150 90 0.40
TBH-2 6 ± 0.5 13 ± 0.6 17 ± 0.8 60 90 150 100 0.45
TBH-3 8 ± 0.5 15 ± 0.6 19 ± 0.8 50 75 125 115 0.62
TBH-4 10 ± 0.5 17 ± 0.6 21 ± 0.8 40 60 100 130 0.71
TBH-5 10 ± 0.5 17 ± 0.6 21 ± 0.8 53 79.5 132 130 0.71
TBH-6 13 ± 0.5 20.5 ± 0.8 24.5 ± 0.8 30 45 90 180 0.93
TBH-7 13 ± 0.5 20.5 ± 0.8 24.5 ± 0.8 36 54 108 180 0.93
TBH-8 16 ± 0.5 23.5 ± 0.8 27.5 ± 0.8 21 31.5 63 205 1.00
TBH-9 16 ± 0.5 23.5 ± 0.8 27.5 ± 0.8 34 51 96 205 1.00
TBH-10 19 ± 0.5 26.5 ± 0.8 30.5 ± 08 18 27 54 240 1.23
TBH-11 19 ± 0.5 26.5 ± 0.8 30.5 ± 1.2 34 51 85 240 1.23
TBH-12 22 ± 0.5 29.5 ± 0.8 33.5 ± 1.2 16 24 48 280 1.38
TBH-13 25 ± 0.5 33.1 ± 0.8 37.1 ± 1.2 15 22.5 45 300 1.54
TBH-14 25 ± 0.5 33.1 ± 0.8 37.1 ± 1.2 21 31.5 54 300 1.54
TBH-15 32 ± 0.7 40.4 ± 0.8 44.4 ± 1.2 11 16.5 33 420 1.75
TBH-16 38 ± 0.7 46.4 ± 0.8 50.4 ± 1.2 10 15 30 500 2.05
TBH-17 51 ± 0.7 59.8 ± 0.8 63.8 ± 1.2 8 12 24 630 2.65
TBH-18 64 ± 1.0 73 ± 0.8 77 ± 1.5 5 7.5 15 790 3.35
TBH-19 76 ± 1.0 85.6 ± 0.8 89.6 ± 1.5 4 6 12 920 4.05
TBH-20 89 ± 1.0 98.6 ± 1.0 102.6 ± 1.5 3 4.5 9 1060 4.38
TBH-21 102 ± 1.0 113 ± 1.0 117 ± 1.5 3 4.5 9 1200 5.05
TBH-22 127 ± 1.0 138 ± 1.0 143 ± 1.5 3 4.5 9 1200 6.72
TBH-23 152 ± 1.0 164 ± 1.0 169 ± 1.5 2.5 3.75 7.5 1800 8.20
TBH-24 203 ± 1.0 261 ± 1.5 222 ± 2.0 2 3 6 2300 11.75
Three Layers High Pressure Steel Wire Braided Hose Size Table
Model Inside Diameter (mm) Wire Layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
THBH-1 5 ± 0.5 13.2 ± 0.6 17 ± 0.8 72 108 180 120 0.50
THBH-2 6 ± 0.5 14.7 ± 0.6 18.7 ± 1.0 68 102 170 140 0.56
THBH-3 8 ± 0.5 16.7 ± 0.6 20.7 ± 1.0 54 81 120 160 0.83
THBH-4 10 ± 0.5 18.7 ± 0.6 22.7 ± 1.0 44 66 110 180 0.95
THBH-5 13 ± 0.5 22.2 ± 0.8 26.2 ± 1.2 36 54 108 240 1.22
THBH-6 16 ± 0.5 25.2 ± 0.8 29.2 ± 1.2 32 48 96 300 1.30
THBH-7 19 ± 0.5 28.2 ± 0.8 32.2 ± 1.2 28 42 84 330 1.62
THBH-8 22 ± 0.5 31.2 ± 0.8 35.2 ± 1.2 26 39 78 380 1.81
THBH-9 25 ± 0.5 34.9 ± 0.8 38.9 ± 1.2 24 36 72 400 1.99
THBH-10 32 ± 0.7 42.1 ± 0.8 46.1 ± 1.5 13 19.5 39 450 2.29
THBH-11 38 ± 0.7 48.1 ± 0.8 52.1 ± 1.5 12 18 36 500 2.68
THBH-12 51 ± 0.7 61.5 ± 0.8 65.5 ± 1.5 10 15 30 630 3.40
THBH-13 64 ± 1.0 74.8 ± 1.0 78.8 ± 1.5 6 9 18 790 4.30
THBH-14 76 ± 1.0 87.4 ± 1.0 91.4 ± 1.5 5 7.5 15 960 5.20
THBH-15 89 ± 1.0 100.4 ± 1.0 104.4 ± 1.5 4 6 12 1100 5.55
THBH-16 102 ± 1.0 115.0 ± 1.0 119 ± 1.5 3.5 5.25 10.5 1280 6.47
THBH-17 127 ± 1.0 140 ± 1.0 145 ± 1.5 3.5 5.2 10.5 1560 8.20
THBH-18 152 ± 1.0 166 ± 1.0 171 ± 1.5 3 4.5 9 1800 9.88
THBH-19 203 ± 1.0 218 ± 1.5 224 ± 2.0 2.5 108 7.5 2300 14.2

Feature:

  • Made of special synthetic rubber.
  • Excellent oil resistance.
  • Heat, aging resistance.
  • High pressure resistance.
  • Excellent pulse performance.
  • Hose combined tightly.
  • Soft when using.
  • Small deformation under pressure.

Application:
High pressure steel wire braided hose is widely used for mine hydraulic support, oil exploitation, suitable for construction, material handling, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery, tools and various industrial sectors mechanization and automation of hydraulic petroleum-based delivery system with a certain pressure and temperature oil, liquid, water-based liquid, gas and liquid transmission.
