Teflon Hose Transports All Inert Chemicals, Solvents.

Teflon hose is made of polytetrafluoroethylene and steel wire braided. It is divided into smooth core teflon hose and convoluted core teflon hose. The teflon core features acid and alkali resistance, anti-aging, anti-fatigue, nontoxic, non-stick surface, non-flammable. The braided steel wire can protect the core from damaging and improve the stability. It is an ideal hose for conveying chemical solvents product.

Two steel wire braided teflon hoses: one smooth core with steel wire braided teflon hose, one convoluted core steel wire braided teflon hose
Smooth and convoluted core teflon hose

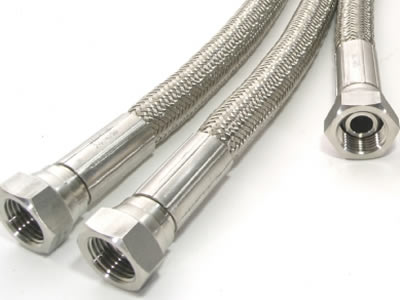

There are three teflon hoses, each of them has metal connectors.
Three teflon hoses with metal connectors.

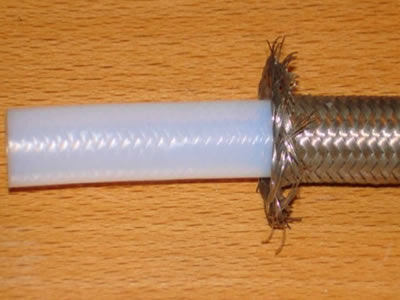

It shows the teflon hose inner tuber.
Teflon hose has PTFE inner tuber that is acid and alkali resistant.

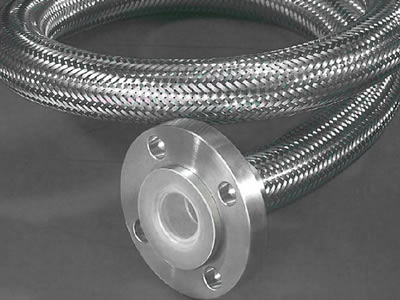

There is one teflon hose with metal flange.
Teflon hose with metal flange connector.

Specification:

  • Material: PTFE tube, SS 304 wire.
  • Type: smooth core teflon hose, convoluted core teflon hose.
  • Construction: inner PTFE tube and outer steel wire braided.
  • Working temperature: -60°C up to +260°C.
Smooth Core Teflon Hose Size Table
Model I.D O.D W.P B.P Min. B.R Weight Length
mm inch mm MPa psi MPa psi bar kg/m m/roll
CBTH-1 3.2 1/8 6.20 15.00 2175.00 108.00 15660 1.5 0.050 ≥50
CBTH-2 4.8 3/16 7.70 12.00 1740.00 73.00 10585 1.5 0.060 ≥50
CBTH-3 6.3 1/4 10.10 10.50 1523.00 62.00 8990 2.0 0.077 ≥50
CBTH-4 8 5/16 11.60 10.50 1523.00 55.20 8004 3.0 0.098 ≥50
CBTH-5 10 3/8 13.40 10.50 1523.00 48.30 7004 3.0 0.110 ≥50
CBTH-6 12.5 1/2 16.80 5.60 812.00 41.40 6003 5.2 0.124 ≥50
CBTH-7 16 5/8 20.10 5.60 812.00 34.50 5003 6.5 0.154 ≥50
CBTH-8 19 3/4 23.30 5.60 812.00 27.60 4002 7.7 0.170 ≥50
CBTH-9 25 1 29.80 5.60 812.00 24.10 3495 9.0 0.273 ≥50
Convoluted Core Teflon Hose Size Table
Model I.D O.D Tube W.P B.P Min. B.R Length
inch Min mm Max mm min max mm bar bar mm m/roll
SBTH-1 1/4 5.75 6.55 9.85 10.55 1.0 151 450 32 ≥10
SBTH-2 5/16 7.75 8.55 12.25 13.15 1.0 126 370 36 ≥10
SBTH-3 3/8 9.14 10.25 15.86 16.50 1.0 105 324 59 ≥10
SBTH-4 1/2 12.45 13.25 18.45 19.35 1.5 90 270 82 ≥10
SBTH-5 5/8 15.35 16.25 24.85 25.55 1.5 72 255 95 ≥10
SBTH-6 3/4 18.60 19.85 28.25 29.55 1.5 60 231 113 ≥10
SBTH-7 7/8 21.85 22.86 32.25 33.55 2.0 52 189 145 ≥10
SBTH-8 1 24.89 26.16 35.55 36.85 2.0 47 144 189 ≥10

Feature:

  • High lubricating property.
  • Excellent chemical resistance.
  • Wear resistance, high lubrication.
  • Low temperature and high temperature resistant.
  • Excellent flexibility.
  • Acid and alkali resistant.
  • Anti-fatigue.
  • Anti-aging.
  • UV Resistant.
  • Electrically insulated.
  • No odor, nontoxic, non-stick surface, non-flammable.
  • Non-stick, easily cleaned.

Application:
Teflon hose features corrosion, chemical and electric resistance, anti-aging, anti-stick. Widely used in medical, shoe machine, melt machine, coating machine, hydraulic machine, engine bed, hot melt adhesive coating machine, etc.
