High Pressure Spiral Steel Wire Hose - Excellent Pulse Performance

Three high pressure spiral steel wire hoses: two layers steel wire spiral hose, four layers steel wire spiral hose and six layers steel wire spiral hose.
High pressure steel wire spiral hose with two, four and six layers spiral steel wire.

High Pressure Spiral Steel Wire Hose consists of anti-liquid inner layer, middle layer, reinforcement layer which can be two, four or six steel wire spiral layers and an outer layer. The inner layer deliveries media and bears the pressure, besides, it protects the steel wire against corrosion. The outer layer protects the steel wire from damaging. The steel wire is the frame material and plays a reinforcement function. Our high pressure steel wire spiral hose meets GB/T10544-03 standard, DIN20023, SAE100R9-13 standard which is not suitable for castor oil-based and lipid-based liquid.

Specification:

  • Construction: Inner layer, middle layer, reinforcement layer, outer layer.
  • Working temperature: -30°C up to +120°C.

Feature:

  • Oil, heat, aging resistance.
  • Low and high temperature resistance.
  • High pressure resistance.
  • Fatigue resistance.
  • Excellent pulse performance.

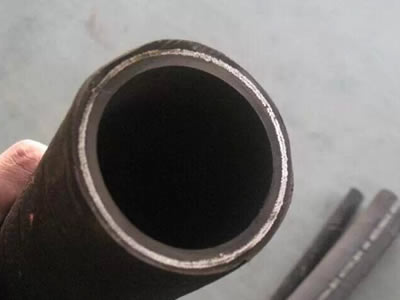

There is one rubber hose with two layers of steel wire reinforcement.
High pressure spiraled steel wire hose with two layers of reinforcement.

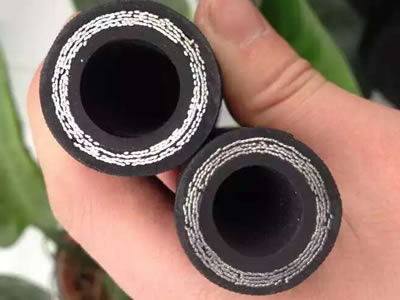

One hand is holding two rubber hoses, which have three layers of reinforcement.
High pressure spiraled steel wire hose with three layers of reinforcement.

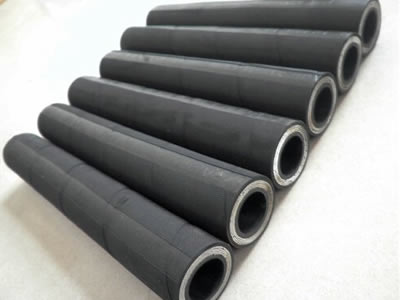

There are six sprial hoses, each of them has six layers of reinforcement.
High pressure spiral steel wire hose with six layers of reinforcement.

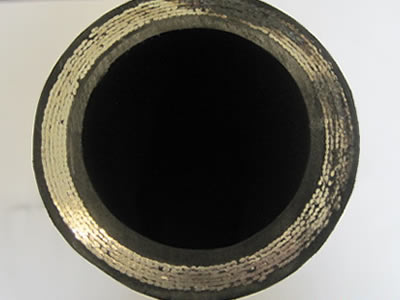

It is the cross section of one spiral steel wire rubber hose.
Six layers of steel wire spiraled rubber hose.

Application:
The high pressure steel wire spiral hose is suitable for conveying hydraulic liquid such as glycol, mineral oils, lubricants, emulsion, hydrocarbons, etc.

Two Layers High Pressure Steel Wire Spiral Hose Size Table
Model Inside Diameter (mm) Wire layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
6 × 2SP 6 ± 0.5 12.5 ± 0.6 16 ± 0.8 60 120 180 130 0.40
8 × 2SP 8 ± 0.5 14.5 ± 0.6 18 ± 0.8 60 120 180 145 0.55
10 × 2SP 10 ± 0.5 17.0 ± 0.6 21 ± 0.8 60 120 180 160 0.75
13 × 2SP 13 ± 0.5 21.6 ± 0.8 25 ± 1.0 46 92 130 210 0.90
16 × 2SP 16 ± 0.5 24.5 ± 0.8 28 ± 1.0 35 70 105 260 1.00
19 × 2SP 19 ± 0.5 27.0 ± 0.8 31 ± 1.0 28 42 84 280 1.30
22 × 2SP 22 ± 0.8 31.0 ± 0.8 35 ± 1.0 24 36 72 320 1.45
25 × 2SP 25 ± 0.8 33.0 ± 0.8 38 ± 1.5 21 42 63 360 1.54
32 × 2SP 32 ± 0.8 41.0 ± 0.8 46 ± 1.5 20 40 60 460 2.14
38 × 2SP 38 ± 0.8 50.0 ± 0.8 54 ± 1.5 18 36 54 560 2.60
51 × 2SP 51 ± 0.8 60.8 ± 1.0 65 ± 1.5 14 28 42 720 3.42
64 × 2SP 64 ± 1.0 72.0 ± 1.0 78 ± 1.5 12 24 36 790 4.10
76 × 2SP 76 ± 1.0 92.0 ± 1.0 99 ± 1.5 10 20 30 920 12
102 × 2SP 102 ± 2.0 123 ± 2.0 130 ± 2.0 9 18 27 1200 14
127 × 2SP 127 ± 2.0 134 ± 2.0 141 ± 2.0 8 16 24 1500 16
152 × 2SP 152 ± 2.0 173 ± 3.0 180 ± 4.0 8 16 24 2280 18
203 × 2SP 203 ± 2.0 225 ± 3.0 232 ± 4.0 8 16 24 3050 24
254 × 2SP 254 ± 2.0 280 ± 3.0 288 ± 4.0 8 16 24 3810 30
305 × 2SP 305 ± 2.0 330 ± 3.0 338 ± 4.0 8 16 24 4510 36
Four Layers High Pressure Steel Wire Spiral Hose Size Table
Model Inside Diameter (mm) Wire layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
6 × 4SP 6 ± 0.5 14.4 ± 0.8 19 ± 1.0 100 150 210 130 0.65
8 × 4SP 8 ± 0.5 16.4 ± 0.8 20.5 ± 1.0 80 120 210 145 0.85
10 × 4SP 10 ± 0.5 19.2 ± 0.8 24 ± 1.0 70 105 210 160 1.03
13 × 4SP 13 ± 0.5 22.2 ± 0.8 27 ± 1.0 60 90 180 210 1.12
16 × 4SP 16 ± 0.5 26 ± 0.8 30 ± 1.0 55 82.5 165 260 1.72
19 × 4SP 19 ± 0.5 30 ± 0.8 35 ± 1.5 46 69 140 280 2.08
22 × 4SP 22 ± 0.8 33 ± 0.8 37 ± 1.5 40 60 120 320 2.39
25 × 4SP 25 ± 0.8 36 ± 0.8 41 ± 1.5 35 52.5 112 360 2.51
32 × 4SP 32 ± 0.8 44 ± 0.8 49 ± 1.5 32 46 96 460 3.12
38 × 4SP 38 ± 1.0 50.8 ± 1.0 56 ± 1.5 25 37.5 75 560 4.31
45 × 4SP 45 ± 1.0 57.8 ± 1.0 61.8 ± 1.5 23 34.5 69 650 4.87
51 × 4SP 51 ± 1.0 63 ± 1.0 69 ± 1.5 20 30 60 720 5.4
51 × 4SP 51 ± 1.0 63 ± 1.0 69 ± 1.5 35 70 87.5 900 5.7
64 × 4SP 64 ± 1.2 77 ± 1.0 84 ± 1.5 35 70 87.5 1100 6.7
76 × 4SP 76 ± 1.4 101 ± 1.5 107 ± 2.0 35 70 87.5 1200 16.5
89 × 4SP 89 ± 1.4 114 ± 1.5 120 ± 2.0 35 70 87.5 1300 18.4
102 × 4SP 102 ± 1.5 127 ± 1.5 133 ± 2.0 35 70 87.5 1400 20.3
127 × 4SP 127 ± 1.5 156 ± 1.5 164 ± 2.0 35 70 87.5 1500 22
152 × 4SP 152 ± 2.0 184 ± 3.0 192 ± 4.0 16 32 48 2580 24
203 × 4SP 203 ± 2.0 235 ± 3.0 243 ± 4.0 16 32 48 3350 31
254 × 4SP 254 ± 2.0 291 ± 3.0 299 ± 4.0 16 32 48 4110 39
Six Layers High Pressure Steel Wire Spiral Hose Size Table
Model Inside Diameter (mm) Wire layer Diameter (mm) Outside Diameter (mm) Working Pressure (MPa) Proof Pressure (MPa) Burst Pressure (MPa) Min Bend Radius (mm) Weight kg/m
6 × 6SP 6 ± 0.5 16.6 ± 0.8 20.6 ± 1.0 110 220 310 180 0.95
10 × 6SP 10 ± 0.5 21.8 ± 0.8 28.8 ± 1.0 77 154 231 210 1.48
13 × 6SP 13 ± 0.5 24.8 ± 0.8 28.8 ± 1.0 66 132 198 260 1.75
16 × 6SP 16 ± 0.5 29.0 ± 0.8 33.0 ± 1.0 61 122 183 310 2.02
19 × 6SP 19 ± 0.5 33.0 ± 0.8 37.0 ± 1.5 51 102 156 350 2.49
25 × 6SP 25 ± 0.8 39.0 ± 0.8 44.0 ± 1.5 51 102 153 430 2.82
32 × 6SP 32 ± 0.8 47.0 ± 0.8 50.4 ± 1.5 45 90 135 530 3.79
38 × 6SP 38 ± 1.0 54.2 ± 1.0 57.6 ± 1.5 45 90 135 660 5.76
51 × 6SP 51 ± 1.0 66 ± 1.0 72 ± 1.5 70 140 175 1000 9.5
64 × 6SP 64 ± 1.2 81 ± 1.0 88 ± 2.0 70 141 175 1200 13.6
76 × 6SP 76 ± 1.4 109 ± 1.5 116 ± 2.0 70 140 175 1300 23.7
89 × 6SP 89 ± 1.4 122 ± 1.5 129 ± 2.0 70 140 175 1400 26.6
102 × 6SP 102 ± 1.5 135 ± 1.5 142 ± 2.0 70 140 175 180 29.8
40 rolls plastic film packing high pressure steel wire spiral hose in stock
High pressure steel wire spiral hose plastic film packing
Many rolls plastic film packing high pressure steel wire spiral hose on container
High pressure steel wire spiral hose in container
